Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1127G4715C1 |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Chassis NO: | ZZ1127G4715C1 | Engine: | YC4E140-33, 140HP, Euro 3 |
---|---|---|---|
Wheel Base: | 4700mm | Drive Type: | 4×2 |
Transmission: | WLY651(6 Forwards & 1 Reverses) | Rim/ Tire: | 8.25R20 (6+1 Spare Tire) |
Highlight: | SINOTRUK HOWO 4×2 Refrigerated Truck,Refrigerated Truck 140HP RHD,Refrigerated Vehicles 140HP RHD |

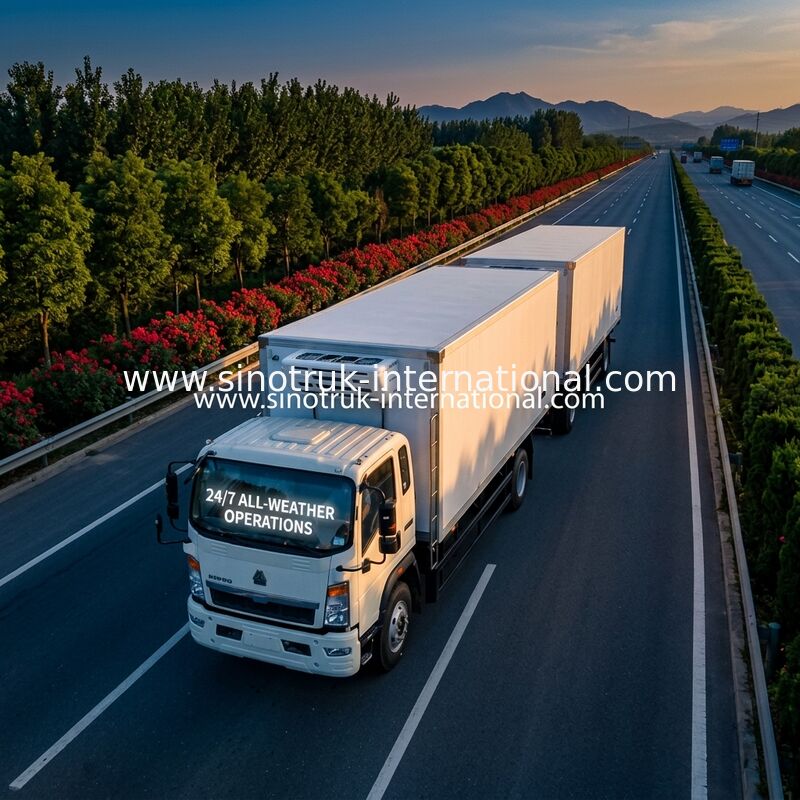

SINOTRUK HOWO 4×2 5-10 Ton Refrigerated Truck 140HP RHD
Description:
Refrigerator truck is a closed-type van used to transport frozen or fresh-keeping goods. ), dairy products (dairy transporter), vegetables and fruits (fresh goods transporter), vaccine drugs (vaccine transporter), etc.
The refrigerated truck is composed of the walking part of the special vehicle chassis, the thermal insulation box (generally composed of polyurethane material, glass fiber reinforced plastic, color steel plate, stainless steel, etc.), the refrigeration unit, the temperature recorder of the refrigerated truck in the compartment and other components. Vehicles, such as meat hook trucks, can be equipped with optional parts such as meat hooks, waistbands, aluminum alloy guide rails, and ventilation slots.
Specification:
SINOTRUK HOWO 4×2 5-10 Ton Refrigerated Truck 140HP RHD | |
Chassis Model | ZZ1127G4715C1 |
Drive Type | 4×2 |
Engine | YC4E140-33, 140hp, Euro 3 |
Cabin | 2080 with AC RHD(with one sleeper, air-conditioner and two new-style seat) |
Transmission | WLY651(6 forwards & 1 reverses) |
Front Axle | 3.2 Tons |
Driving Axle | 8.0 Tons |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 8.25R20 (6+1 Spare tire) |
Wheel base | 4700(mm) |
Van board material | FRP inner and outer skin, polyurethane insulation material |
Dimension of cargo body | 6000*2400*2000mm, Bottom:3mm Side:1.5mm |
Refrigerator | XL-300, -18C0 |
Overall dimension | 8700×2500×3300mm |
The curb weight | 4355(Kg) |
Gross weight | 12490 kg |
Max. speed | 95km/h |
Color | White, red, green, golden and so on. |
Applications:
Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.
Competitive Advantage:
1) The service brake is air brake, the braking distance is shorter and safer. The parking brake is an air knife, which is more stable and safer.
2) Intelligent security control strategy. If the gas pedal and the brake pedal are pressed at the same time, the refrigerated truck will use the brake function first.
3) HOWO freezer truck has good sealing performance, good heat preservation effect, smooth operation and high carrying capacity.
4) The insulation effect of refrigerated truck for sale is closely related to the process, structure and thickness of the freezer truck. Based on continuous testing, Sinotruk has developed a freezer truck with an insulated compartment, no water leakage, good quality and high overall strength of the compartment.
5) The "sandwich" structure (low thermal conductivity), good thermal insulation effect. Using unsaturated polyester resin as binder, plus a cushion, with rigid polyurethane foam insulation, heat conduction low coefficient, high strength. High strength plate bonding, high sealing glue, forming a whole. The structure of the refrigerator car is dominant in the domestic market, our company is using the technology
of refrigerated trucks.
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and more reliable
9) competitive price, cost-effective
