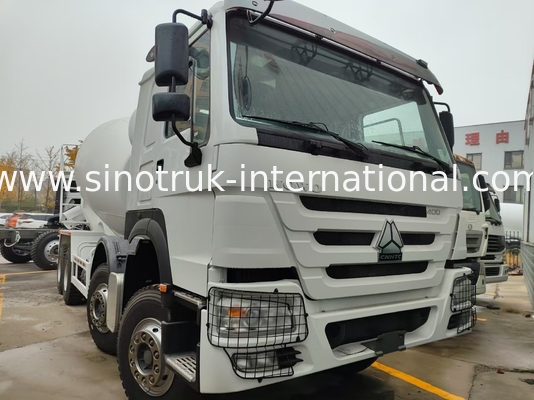

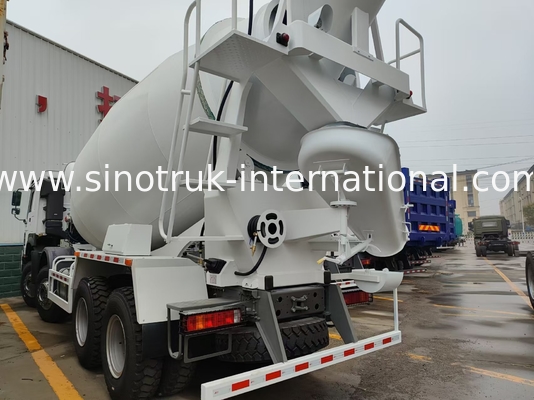

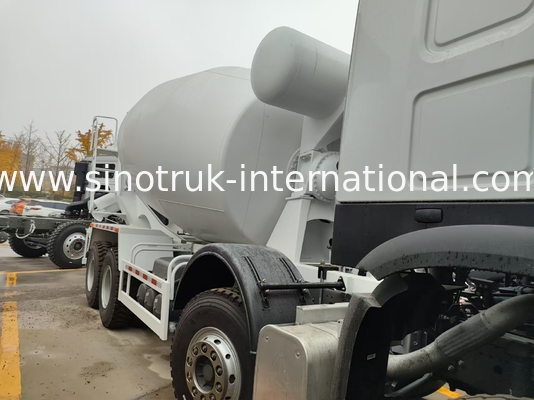

HOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity

HOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity

  • HOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity
  • HOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity
  • HOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity
  • HOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity
HOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1317V3267B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unite
Price: negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25-30 days after received your advance payment
Payment Terms: T/T, L/C
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Color: White Cabin: HW76
Engine: Wp12.400E201 Engine Output: 400HP
Model: ZZ1317V3267B1 Drive Type: 8*4
Tire: 12.00R20
Highlight:

16CBM Concrete Mixing Truck

,

400HP Concrete Mixing Truck

,

12Wheels Concrete Mixing Truck

Description:



HOWO Mixer Truck,suitable for urban construction,highway,railway,and other departments. Mixer truck is one of indispensable important equipment of the mechanize construction. The body material use special wear-resistant alloy materials.Concrete mixing and transportation with good mixing uniformity. Loading and discharge is
speedly,discharge residual rate is low, hydraulics system reliable,easy to operation and look like beautiful.







Specification:



New Howo Concrete Mixer Truck 16CBM 8 x 4 Euro 2 400Hp Construction
Model ZZ1317V3267B1
Drive Type 8×4

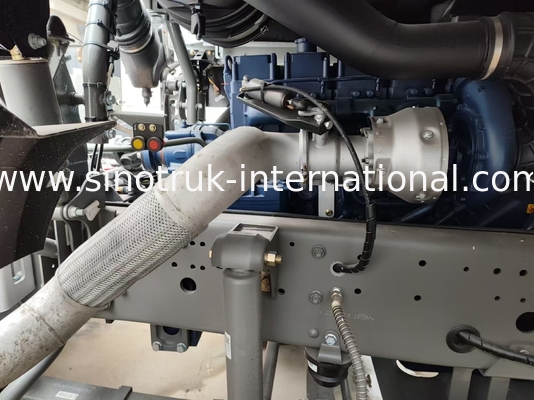

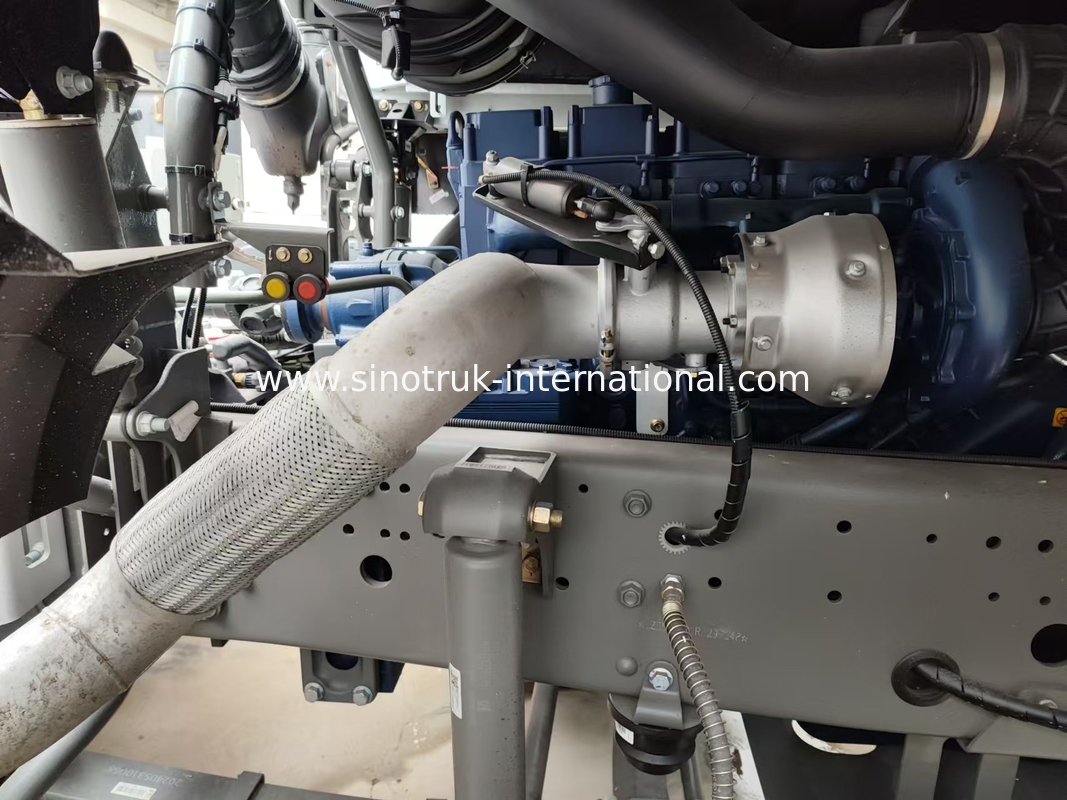

Engine
WP12,.400E201,400HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD95 ( 9.5 Tons)
Driving Axle 2×HC16, 2×16Tons
Steering BOSCH or China brand hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 1800+3200+1350(mm)
Overall dimension 10207×2496×3115(mm)
Tank body Capacity 10-20CBM
The curb weight 12650(Kg)
Gross weight 31000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.




Applications:



t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other

infrastructure construction business.



Competitive Advantage:



1) The leading product technology, complete function, excellent performance, reliable quality, easy to

operate.

2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

discharge uniformity, low rate of residual.

3) Imported hydraulic pump, hydraulic motor and speed reducer.

4) Uses the high strength steel plate, long service life.

5) Optimization of the whole structure, low center of gravity, high running efficiency.

6) Product range is wide, the tank capacity of 6 to 18 cubic meters.

7) Choose a variety of auxiliary device.

8) Match all concrete mixer truck chassis.

9) based on strong technical support and top level technology make the trucks with high

quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and

quickly

13) professional import and export dealing precedure, make customs clearance more high efficiencyHOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity 0HOWO 8*4 12Wheels Concrete Mixing Truck 400HP 16CBM Big Power Big Capacity 1
